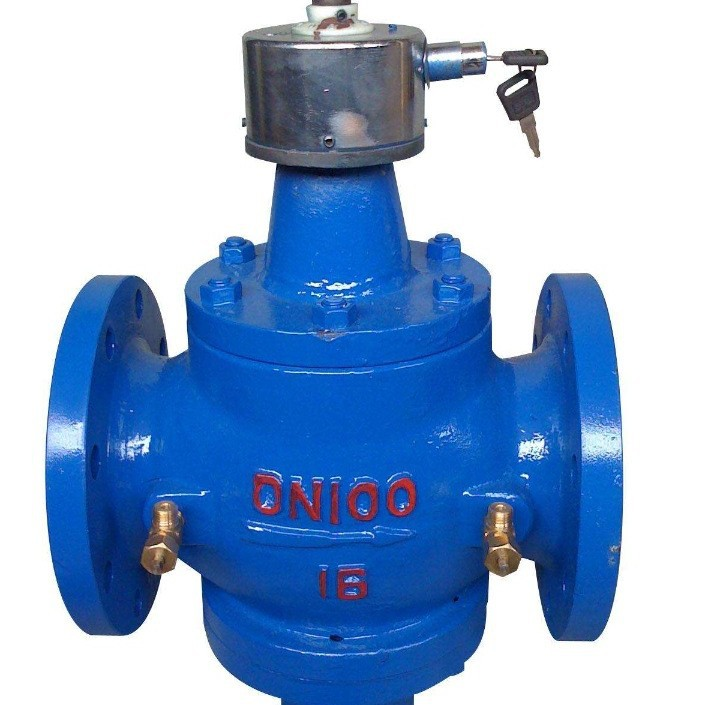

Self-acting dynamic balance valve for stable flow control in systems

Short Description:

The ZLF self-operated balance valve is a type of valve that uses the pressure change of the medium itself for self-regulation, thereby maintaining a constant flow rate through the controlled system. It features flow indication and can be adjusted online, suitable for non-corrosive media such as heating and air conditioning systems. Through one-time testing and adjustment before operation, the system flow can be automatically fixed at a pre-set value. This valve offers accurate flow regulation, simple operation, stable operation, reliable performance, and a long service life.

Send email to us

Product Detail

Production workshop

QC

Shipments to customers

Product Tags

Brief

Self operated fow control valve,is a kind of self controled by pressure medium itself and maintain constant flow through the valve control system,convenient and has a fow indicator contol,fow control s suitable for heaing and air concitoning and other non orosive medum.Before nunning a one tine adjustment,you can make the system automatically constant flow of the required settings.

Technical data

Nominal pressure PN(MPa)	1.6
Strength test(MPa)	2.4
Seal test(MPa)	1.76
Working temperature ℃	<80℃
Suitable mediums	Water,oil,etc
Differential pressure control range	0.2~6

Meterial of main parts

Part name	Meterial
Body,bonnel	Cast iron,cast steel
Spring	Stainless steel
Diaphragm	Nylon reinforced rubber
Valve disc	Copper,stainless steel

Main dimensions

DN(mm)	L	H1	H2	Flow (m³/h)
15	110	72	70	0.1~1
20	110	72	70	0.1~1.5
25	115	81	74	0.2~2
32	160	108	91	0.5~4
40	200	138	147	1~6
50	215	138	147	2~10
65	230	143	154	3~15
80	275	170	189	5~25
100	290	193	211	10~35
125	310	208	227	15~50
150	350	254	260	30~80
200	430	289	303	40~180
250	520	325	367	100~300
300	635	357	430	150~1500
350	670	372	495	200~700
