Description
4 Port Ball Valve is a control component used in industrial piping systems for flow direction switching, Diversion, or mixing. Unlike common 2-way or 3-way ball valves, its body has four connection ports. By rotating the ball, the medium can flow between multiple pipelines according to preset paths.
In particular, the 4 way I port ball valve features an internal “I”‑shaped flow passage design, ensuring that at any working position, two channels are in full‑bore connection while the other two channels are completely closed, enabling leakage‑free flow switching.
Structure & Design Features
Our 4 port ball valve adopts a split‑body or side‑entry structure, facilitating online maintenance. The ball is precision cast and lapped to ensure sealing performance against the seats reaching zero leakage (per API 598). Depending on different working conditions, body materials can be selected from WCB carbon steel, CF8/CF8M stainless steel (SS304/SS316L), while seat and seal materials can be PTFE, RPTFE, or PEEK, accommodating temperatures from –29°C to +230°C and various chemical corrosion environments.

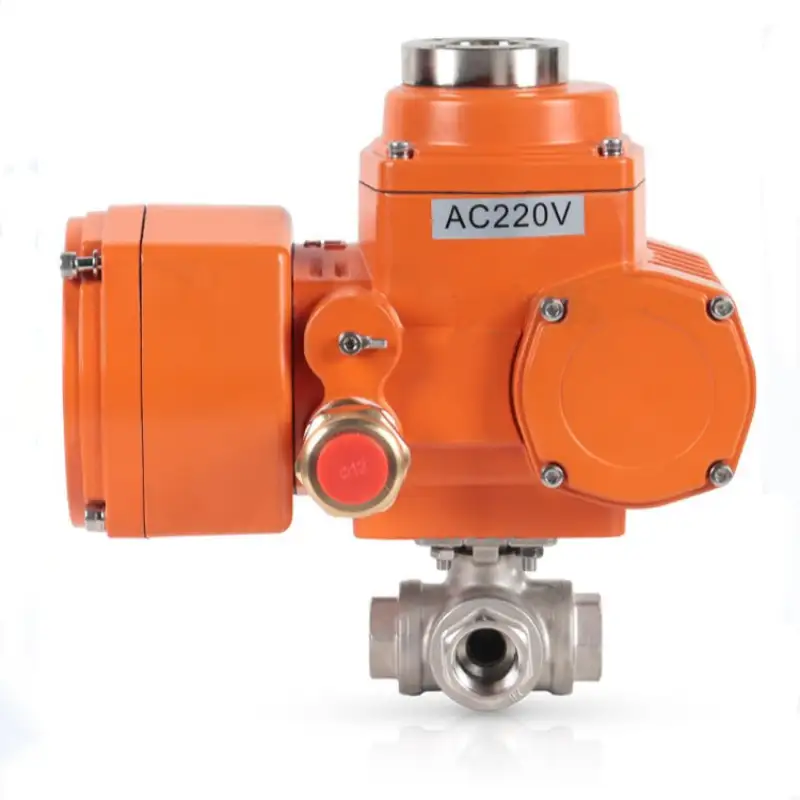

For actuation, the 4 port ball valve supports manual worm gear, pneumatic actuator, or electric actuator, allowing local operation or remote automated control.
Technical Parameters & Specifications
| Parameter | Specification / Range |
|---|---|
| Nominal Diameter (DN) | DN15 – DN300 (1/2″ – 12″) |
| Nominal Pressure (PN) | PN16 – PN100 (Class 150 – Class 600) |
| Body Material | WCB, CF8, CF8M, CF3M |
| Ball Material | SS304, SS316, SS316L (hard chrome plating / nickel‑based alloy spray welding optional) |
| Seat / Seal Material | PTFE, RPTFE, PEEK, Nylon |
| Connection Type | Flanged (RF, RTJ), Butt‑Weld (BW), Socket‑Weld (SW), Threaded (NPT, BSP) |
| Actuation | Manual worm gear, pneumatic, electric |
| Fire‑Safe Design | API 607 / ISO 10497 |
| Leakage Class | ISO 5208 Rate A (zero leakage) |
Application Scenarios
Thanks to the reliable 4 way ball valve working principle and flexible flow passage design, this product is widely used in the following industrial fields:
-
Oil & Gas Industry: Flow switching in manifold systems, fluid diversion in metering systems.
-
Chemical & Petrochemical Industry: Feed, discharge, and circulation line media diversion and mixing for reactors.
-
Water Treatment & Environmental Engineering: Backwash line switching in filtration systems, or zone control valves in water supply networks.
-
Power & Energy Industry: Flow control in cooling water systems and fuel supply systems.
Why Choose CHCV’s 4 Port Ball Valve?
As a professional valve manufacturer, we understand that reliable 4 way ball valve operation is critical to the stability of our customers’ processes.
Each of our 4‑way ball valves undergoes strict pressure and leakage tests before shipment, ensuring precise control – as required by 4 way ball valve dimensions – even under severe conditions.
With extensive industry experience and a rigorous quality control system, CHCV is a trustworthy partner among 4 way ball valve suppliers. Our products comply with international standards such as API 6D and ASME B16.34. Whether for simple media switching or complex multi‑line process control, our 4 way I port ball valve provides safe, reliable, and efficient solutions.
