1.5″ High Pressure Motorized Ball Valve Auto On Off Low Flow Resistance
1.5″ High Pressure Motorized Ball Valve with auto on/off, low flow resistance, full port SS316, 12V/24V, feedback for water, gas and steam.
Description
1.5″ High Pressure Motorized Ball Valve Auto On Off Low Flow Resistance is used for automatic on/off of DN40 high-pressure pipelines. The electric actuator drives the ball to rotate 90°, enabling remote, timed, PLC, or interlock control.
1.5″ motorized ball valve high pressure
1.5″ motorized ball valve high pressure is commonly used for high-pressure water, compressed air, oil products, natural gas, and steam. Valve body options include SS304, SS316, SS316L, WCB, brass, or bronze.
The ball and stem are made of SS304/SS316; seals are PTFE, RPTFE, PEEK, or metal hard seal.
Pressure ratings can cover 1000 WOG, PN25, PN40, Class 150/300; some materials can be made in 2000 WOG or 3000 psi.
2 way motorized ball valve flow control
2 way motorized ball valve flow control is divided into on/off type and modulating type. The on/off type is used for shutoff and connection; the modulating type can accept 4-20mA and 0-10V signals and, with feedback, perform flow, temperature, and pressure control. Normally open, normally closed, spring return, and manual override can be selected according to the project.
full port motorized ball valve
The ball passage of full port motorized ball valve is close to the pipeline inner diameter, with low pressure loss, suitable for high-pressure pipelines requiring low flow resistance.
motorized ball valve with feedback
motorized ball valve with feedback can output switching value, 4-20mA, 0-10V, or potentiometer signals, and the remote end can confirm the actual valve position. Water treatment, unattended pumping stations, HVAC, and industrial pipelines often use it for interlocking, alarm, and fault judgment.
24vdc motorized ball valve is suitable for solar, marine, mobile equipment, irrigation, and DC control systems; 12V DC, 24V AC, 110V AC, 220V AC are also optional. Protection ratings can be IP67, IP68, NEMA 4/4X; explosion-proof applications require a corresponding actuator.

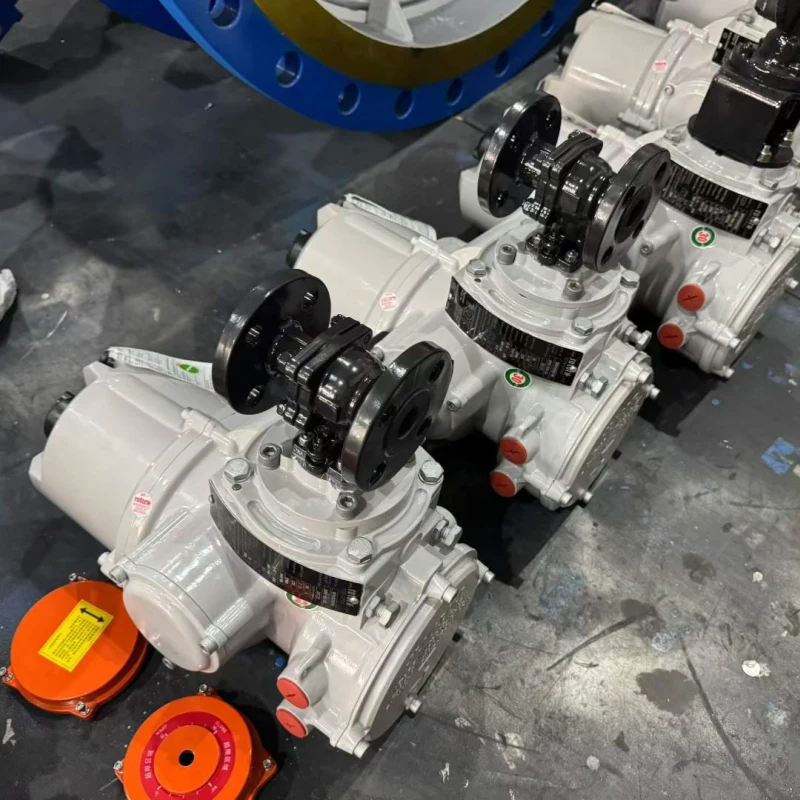

motorized ball valve spring return
motorized ball valve spring return returns to the preset open or closed position when power is off, suitable for pipelines requiring a fail-safe position. For selection, confirm differential pressure, torque, medium temperature, connection standard, voltage, control mode, and feedback signal.
1.5″ High Pressure Motorized Ball Valve Parameter Reference
| Item | Parameter |
|---|---|
| Product Name | 1.5″ High Pressure Motorized Ball Valve Auto On Off Low Flow Resistance |
| Nominal Diameter | 1.5″ / DN40 |
| Valve Body Material | SS304, SS316, SS316L, WCB, brass, bronze |
| Ball/Stem | SS304 / SS316, blow-out proof stem |
| Seal | PTFE, RPTFE, PEEK, metal hard seal |
| Connection | NPT, BSP, BSPP, flange ANSI 150/300, DIN PN16/PN40, welding, clamp |
| Pressure Rating | 1000 WOG, PN25, PN40, Class 150/300; custom 2000 WOG / 3000 psi available |
| Power Supply | 12V DC, 24V DC, 24V AC, 110V AC, 220V AC |
| Control | On/off type, modulating type 4-20mA / 0-10V, normally open, normally closed, spring return |
| Feedback | Switching value, 4-20mA, 0-10V, potentiometer |
| Protection | IP67, IP68, NEMA 4/4X, explosion-proof optional |
| Switching Time | Approx. 5–15 seconds, depending on torque and actuator |
| Medium Temperature | -20°C to 180°C (PTFE/RPTFE); higher for PEEK/metal seal |
| Applicable Media | Water, gas, oil, steam, weakly corrosive liquids, compressed air, natural gas, etc. |
Application scenarios include water treatment, irrigation, HVAC, boilers, cooling water, steam, compressed air, natural gas, oil products, chemical, fire protection, and high-pressure cleaning systems.
For purchase selection, please provide nominal diameter, medium, pressure, temperature, voltage, control mode, connection standard, and feedback requirements. CHCV can configure valve body, actuator, and signal module according to the project.
Trial order from 1 piece; OEM available for 50 pieces or more.
In-stock delivery 3–7 days, regular 7–15 days, customized 15–30 days. Warranty 12 months. Packaging is carton or wooden case; can be shipped by express, air, or sea.
